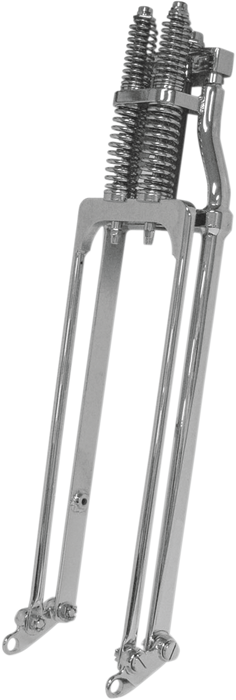

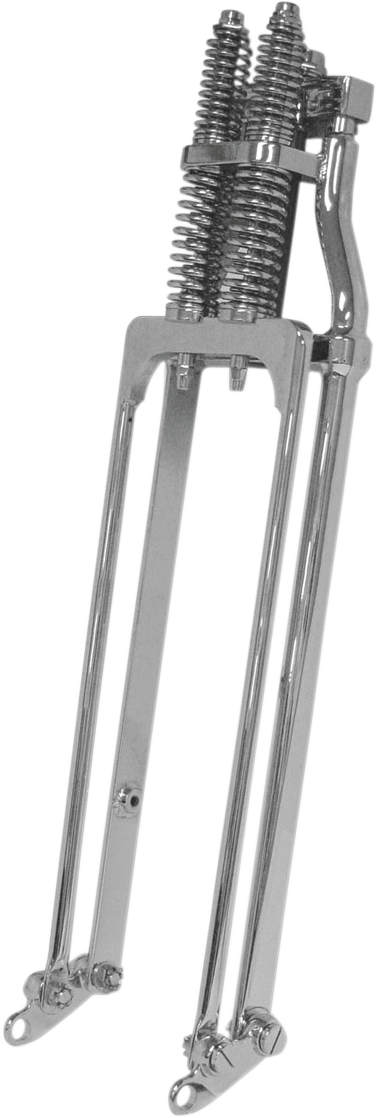

Springer Forks - Chrome - Standard Length

• Economical alternative to a shock dampened-type Springer
• Fully assembled with an in-line top bracket without a built-in rake
• The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
• 1" O.D. steering stem designed for Timken® type bearings
• Both rear legs are threaded for right or left brakes
• The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
• Measures 9-1/4" between Rockers
• Riser mounts are on 4-3/4" centers and threaded 1/2"-20
• Requires wheel compatible with 3/4" O.D. axle
• These Springers are measured from the bottom of the top tree to the center of the axle
• Springers do not accept spotlight bars; no fender mounts.

Manufacturer Part Number: MU35212
