S&S TC3 OIL PUMP & CAMPLATE KIT 99 - 06 TWIN CAM
The S&S® TC3 oil pumps and cam support plates, Twin Cam HD® big twins, are highly recommended for any cam installation, but they are a must if your engine has suffered even a minor problem that created metallic particles or debris. It's pretty easy to see if your oil pump has been chewed up by junk going through it, but it's pretty hard to know if there's still some of that stuff hiding in the oil passages of your cam support plate! Don't gamble with your engine! You should replace them with S&S®. Here's why:Precision CNC machined forged aluminum. Increased structural strength. Dimensional stability. Freedom from internal porosity. Made In The USA.
- Precision CNC machined forged aluminum
- Increased structural strength
- Dimensional stability
- Freedom for internal porosity

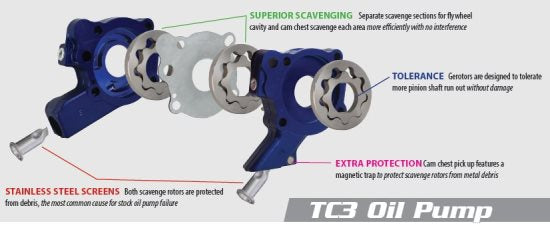

- Separate scavenge sections for flywheel cavity and cam chest scavenge each area more efficiently with no interference (better scavenging = NO MORE OILY AIR CLEANER)
- Gerotors are designed to tolerate more pinion shaft runout without damage
- Cam chest pic up features a magnetic trap to protect scavenge rotors from metal debris
- Both scavenge rotors are protected from debris, the most common cause of stock oil pump failure
- Passage plugs are removable for service
- Bronze pinion shaft bushing in all models and bronze cam bushings in 07-17 style can be replaced
- Adjustable oil pressure regulator - adjust without removing plate from engine
- 99-06 cam support plate is designed to use late style hydraulic cam chain tensioners because stock spring-loaded tensioners used in 99-06 models don't adequately control the valve train at high rpm, especially with higher lift cams or performance valve springs
- Made in the U.S.A.
- Fits 1999-'06 HD® big twins (except 2006 Dyna® models)
