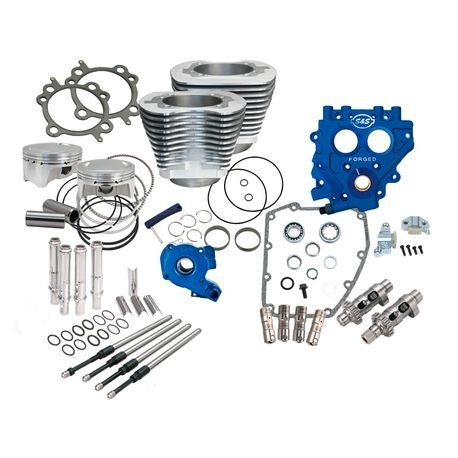

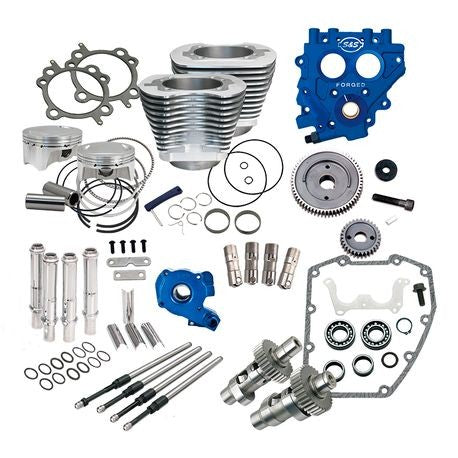

S&S 100" Power Package for Twin Cam 88 Models with 585 Easy Start Cams - Silver
The 100" Power Package is the ideal combination of performance and savings to transform your Twin Cam HD without breaking the bank. Bump the early Twin Cam from 88ci to 100ci as well as adding matched cams/cam plate/oil pump and everything else a high performance cam chest needs to reliably make big power.
- 4" Bore bolt on cylinder and piston kit
- 10.5:1 Compression
- Silver Finish
- S&S 585 Easy Start Chain or Gear Drive Cams
- TC3 Oil Pump
- TC3 Cam Plate
- S&S cam chain tensioners
- Quickee Adjustable Pushrods with Tubes
- S&S Precision Tappets
- All Required Bearings and Gaskets
- Available in Silver or Black finish
Features & Benefits
- Low friction Ductile Cast Iron liner
- 10.5:1 Compression -Bolts in. No machining, balancing, or splitting the crankcases
- Upgrade TC88 to 100 cu inches
- Cylinders fit to pistons- No machining required
- All parts required to upgrade to gear drive cam or hydraulic tensioners in one easy to order part number
- Engineered package to deliver the best bolt in performance
- Although not mandatory, we recommend adding an oil cooler to bikes ridden in warmer climates
S&S 100" Big Bore Kits
|Year||Stroke||Bore||Cylinder Length||Piston Type||Dome Volume||83cc CNC Heads||85cc Stock Heads||89cc S&S Heads|
|1999-2006||4.00"||4.00"||4.937"||Forged||8.75 pop up||10.8:1||10.5:1||10.1:1|
-Not compatible with S&S 79cc Super Stock® heads
-99-04 Twin Cams will require the additional purchase of valve springs pn 900-0593
-Pinion shaft runout must be less that .003" to use gear drive cams.
-Kit not available to fit 06 HD® Dyna® models but parts may be purchased separately.
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.
*IF FOR RACE OR OFF HIGHWAY USE OUR CA EXHAUST WAIVER WILL NEED TO BE SIGNED AND RETURNED PRIOR TO SHIPPING.
CALIFORNIA CARB WAIVER AVAILABLE HERE:
