Low Profile LED Tail Light Harley-Davidson - Original Garage Moto

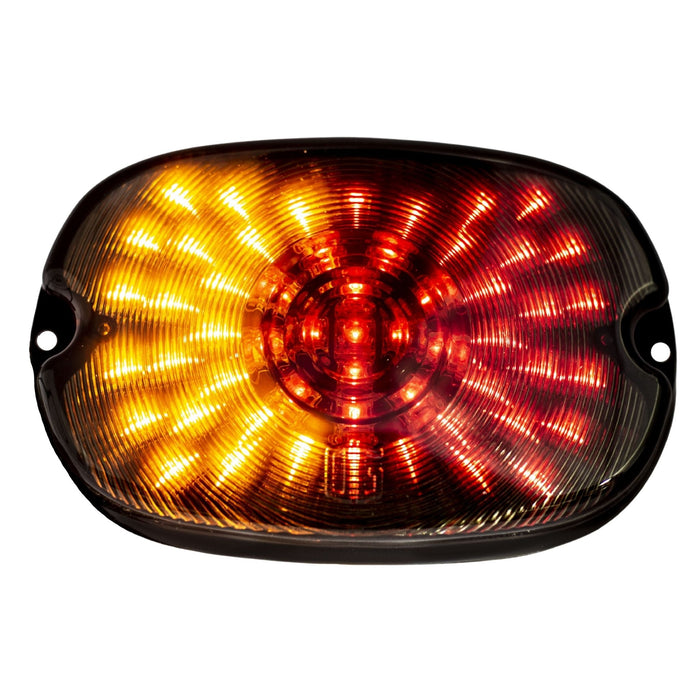

OG Low Profile LED Tail Light V4 for Harley-Davidson

by Original Garage Moto
SKU L-TL-01-SM
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
$89.95 - $89.95
$89.95
$89.95 - $89.95
$89.95
$89.95
Option: Standard

All Harley-Davidson fitted with a Squareback tail light can use our OG Low Profile LED Tail Light V4 as a direct replacement for better & brighter overall lighting. These function as running and brake lights in the same way the OEM tail light does. They can also be used (or not) in conjunction with the built-in integrated turn signals. Features a very low-profile smoked lens. For models with the plate below the brake light, such as most newer Baggers models, it is also available without an integrated license plate light.

*Comes with a full-year replacement warranty.

Features

  • Unique Ultra Low profile dark smoked lens
  • Molded OG Logo on the lens
  • Integrated blinkers
  • Function as Run/Brake
  • New improved Epoxy dual layer Base Coating. Fully waterproof.
  • New improved 3M Duro Neoprene seal included
  • New V4 Blackout SMD Ultra Bright LED Board
  • Dual-function LEDs;
    • Red running light - Full 54 LED Chip
    • Bright Red brake light - Full 54 LED Chip
    • Amber Signal - 19 LED Chip
  • Optional White license plate LED lighting
  • Includes OEM connectors - Plug-and-play
  • Fully warranted

Fitment

  • Fits 1999 to present Harley-Davidson Models with tail light base plate (Standard & Without integrated license plate light)
  • Fits 2018 to 2024 Softail Low Rider FXLR/S. To utilise the turn signal function on the tail light, our 18+ M8 Softail Rear Fender Harness is required.
  • Do not fit 2022-2024 FXLRST models using our new Delphi 3-way variant (Delphi 3-way). These models will need our OG Low Profile LED Tail Light V4 for 2023-Up Softail Lowrider ST
  • Do not fit 2025 to present Softail models

*For 2022-2024 FXLRST models, you must replace the tail light base plate bezel and circuit board with the following Harley-Davidson part numbers: 68830-99A + 73381-12. This allows compatibility with our OG Low Profile LED Tail Light V4 and the OG 18+ M8 Softail Rear Fender Harness for Harley-Davidson.

**If you're experiencing hyper flashing or bulb-out error code, add our OG LED Load Equilizer for a plug-and-play solution for non-CANbus bikes.

***For offroad use only

Installation

Click here for LED turn signal synchronization instructions
