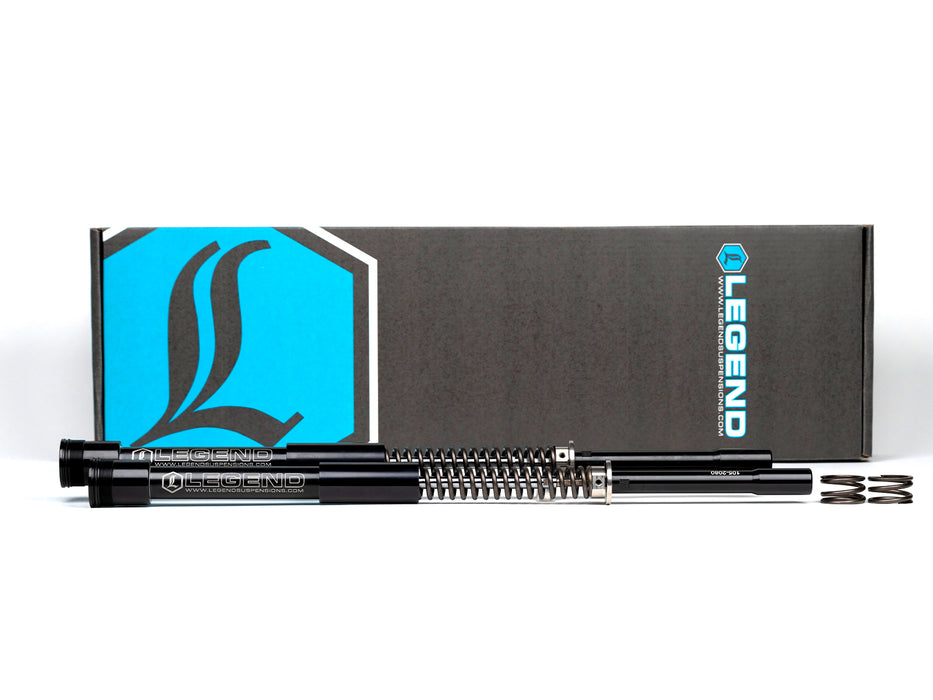

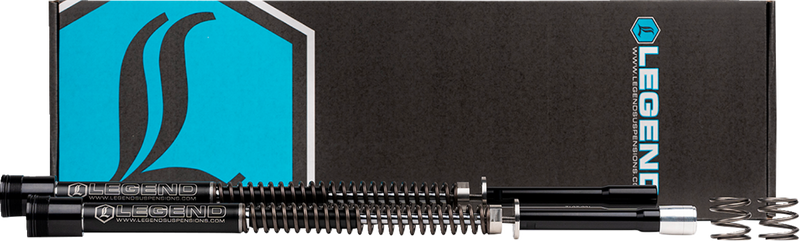

LEGEND AXEO FRONT SUSPENSION SYSTEM FL TOURING MODELS

Original price $899.95 - Original price $899.95
Original price $899.95
$899.99
$899.99 - $899.99
Current price $899.99

  • Designed to be used with stock diameter front wheels (Not designed to work with 21" or 23" wheels).
  • Easy installation
  • Includes two mono-tube, dual chambered damper cartridges, and two top out springs
  • Performance spring rate
  • Machined 303 Stainless threaded pre-load adjuster
  • Increased pre-load range allows the tuning for various riding styles and weights
  • Ride quality is smooth and controlled
  • Improves stability, cornering and traction
  • Eliminates front-end dive during aggressive braking and maneuvering
  • Firm feel for high-speed sweeping turns
  • Eliminates bottoming out on large bumps or potholes
  • Reduces dragging floorboards and pegs
  • Designed for optimum performance with Legend rear suspensions
  • 2017+ AXEO Models retain Harley Davidson's dual bending valve technology in the stock upper fork tubes.
  • P65 WARNING: Cancer and Reproductive Harm
  • Lifetime Warranty
  • Made by hand in Sturgis, SD USA

Note:  Incorporates static sag to shorten overall fork tube length by approximately 1.5″, resulting in weight transferred to the front wheel for improved handling.

    Fitment:

    • '17-'23 FLHT/FLHR/FLHX/FLTRX/FLTRU (49mm tubes)
    • '14-'16 FLHT/FLHR/FLHX/FLTRX/FLTRU (49mm tubes)
    • '97-'13 FLT/FLHT/FLHR/FLTR/FLHX. (41mm tubes)
    • Does not fit '23 FLTRUSE Road glide CVO. See this link for specific kit.
    • '97-'01 models equipped with stock air forks will require purchase of 2 HD OEM #45419-80 and 2 45733-48.
    • +2" Raised style kits on '97-'13 models requires Harley fork tubes #83804-09 (22.55")
    • +2" Raised style kits on '17-'23 models requires Harley fork tubes #45500123 (24.31")

    Installation instructions
