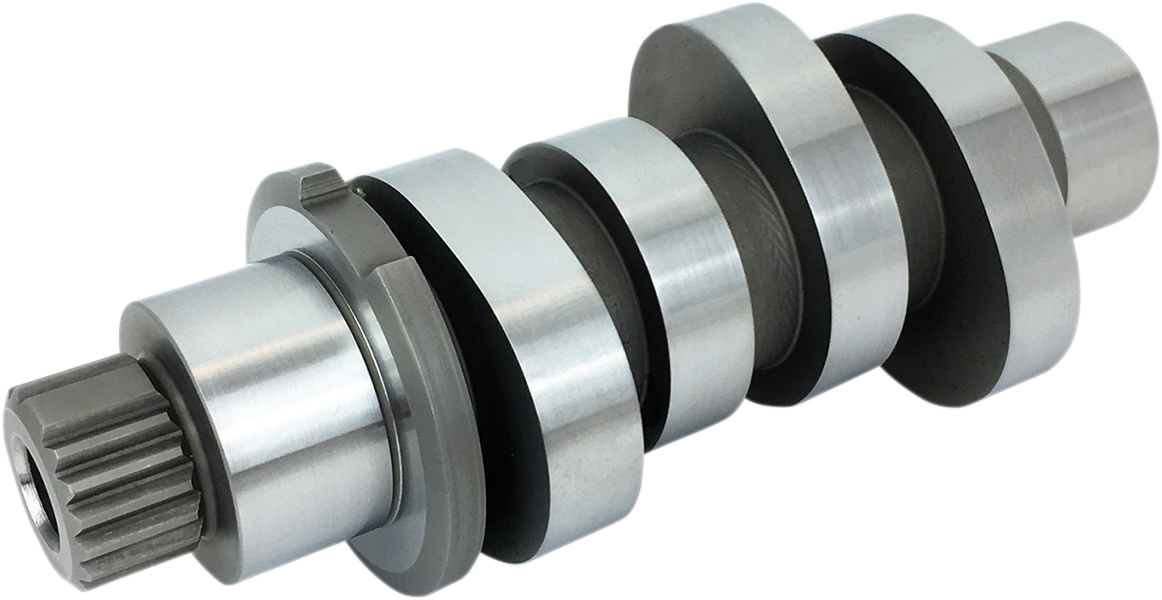

FEULING 521 CHAIN DRIVE CAM SHAFT ('17+M8)
FEULING 521 CHAIN DRIVE CAMSHAFT ('17+M8)
521 CAM - Aggressive pulling power with a nasty sound, the REAPER 521 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system.
NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 (DRAG# 0926-2973) or #1108 (DRAG# 0926-2974). SE cylinder heads have high lift valve springs and will accept the 508 and 521 grind cam. Heavy Duty one piece pushrods are also highly recommended see #4087.
RPM range 2,250 - 6,250. Grind: 521
Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .518 17 BTDC 34 ABDC 231 .162 98.5
Exhaust .521 51.5 BBDC 11.5 ATDC 243 .125 110
*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION-CONTROLLED MOTOR VEHICLES.
IF FOR RACE OR OFF-HIGHWAY USE OUR CA WAIVER WILL NEED TO BE SIGNED AND RETURNED PRIOR TO SHIPPING.
CALIFORNIA CARB WAIVER AVAILABLE HERE:
