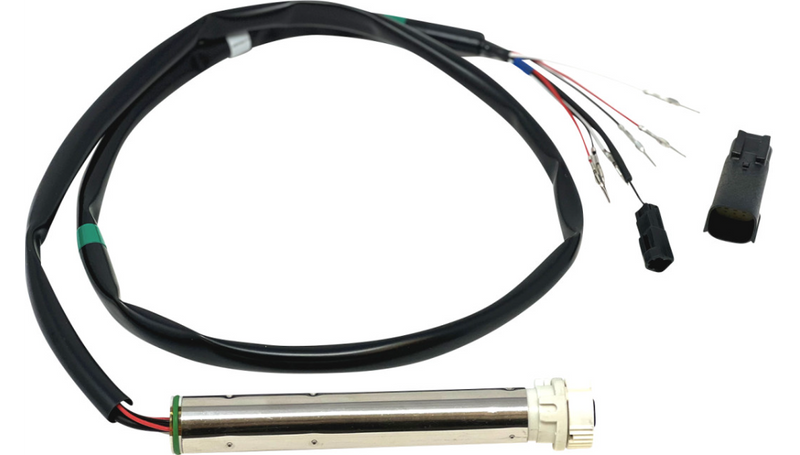

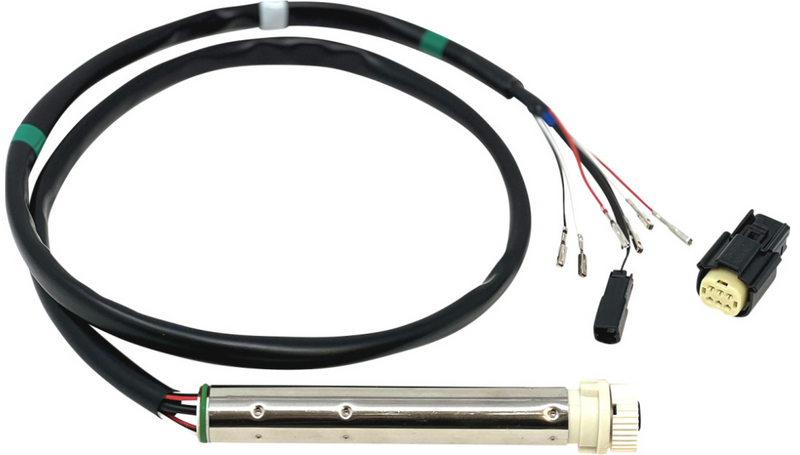

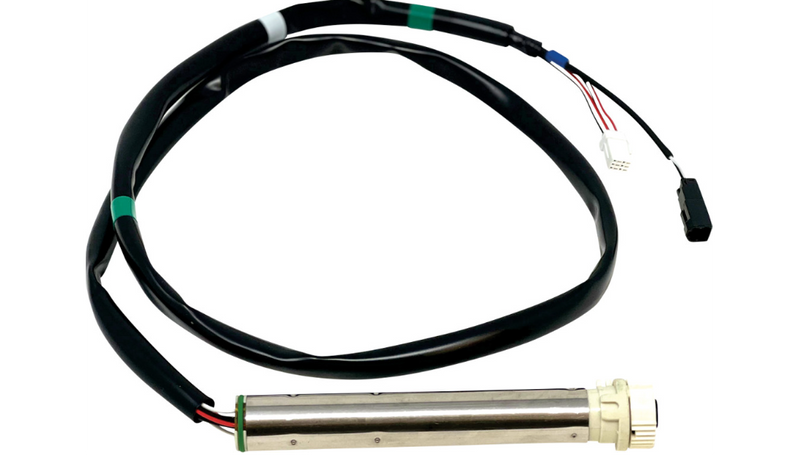

NAMZ Replacement Twist Grip Sensor for all Throttle-by-Wire motorcycles 2008-2013, 2014-2015, and 2016 and up 100% plug-and-play. Made in the USA!

Click here for instructions!

 FOR 2016 UP:



  • NOTE: This twist-grip does NOT cancel cruise control.
  • Hardwired like OEM CVO versions from the sensor to the main connection on the harness
  • Terminals are pre-installed using MIL-SPEC crimping presses
  • Includes installed OEM (HD# 69201162) micro-connector for easy installation after routed through the handlebar
  • Includes installed OEM (HD# 72902-01BK) male 2-position heated grip connection
    • NOTE: be sure that your grip is mated snugly against the gear drive to prevent damage

FOR 2014-2015:

  • NOTE: This twist-grip does NOT cancel cruise control.
  • Hardwired like OEM CVO versions from the sensor to the main connection on the harness
  • Terminals are pre-installed using MIL-SPEC crimping presses
  • Includes OEM (HD# 72414-07BK) female 6-position connector for installation after the harness is routed through the handlebar
  • Includes installed OEM (HD# 72902-01BK) male 2-position heated grip connection
    • NOTE: be sure that your grip is mated snugly against the gear drive to prevent damage
    • The female connector is NOT installed so you can fish the wiring harness through your handlebar
      • Connector Pinout:
      • 1 – BLACK
      • 2 – WHITE
      • 3 – RED
      • (Blue tape around bundle) 4 – BLACK
      • (Blue tape around bundle) 5 – WHITE
      • (Blue tape around bundle) 6 – RED

FOR 2008-2013:

  • NOTE: This twist-grip does NOT cancel cruise control.
  • Hardwired like OEM CVO versions from the sensor to the main connection on the harness
  • Terminals are pre-installed using MIL-SPEC crimping presses
  • Includes OEM (HD# 72188-07BK) male 6-position connector for installation after the harness is routed through the handlebar
  • Includes installed OEM (HD# 72902-01BK) male 2-position heated grip connection
    • NOTE: be sure that your grip is mated snugly against the gear drive to prevent damage
    • The male connector is NOT installed so you can fish the wiring harness through your handlebar
      • Connector Pinout:
      • 1 – BLACK
      • 2 – WHITE
      • 3 – RED
      • (Blue tape around bundle) 4 – BLACK
      • (Blue tape around bundle) 5 – WHITE
      • (Blue tape around bundle) 6 – RED
